Beam CMY

Beam CMY

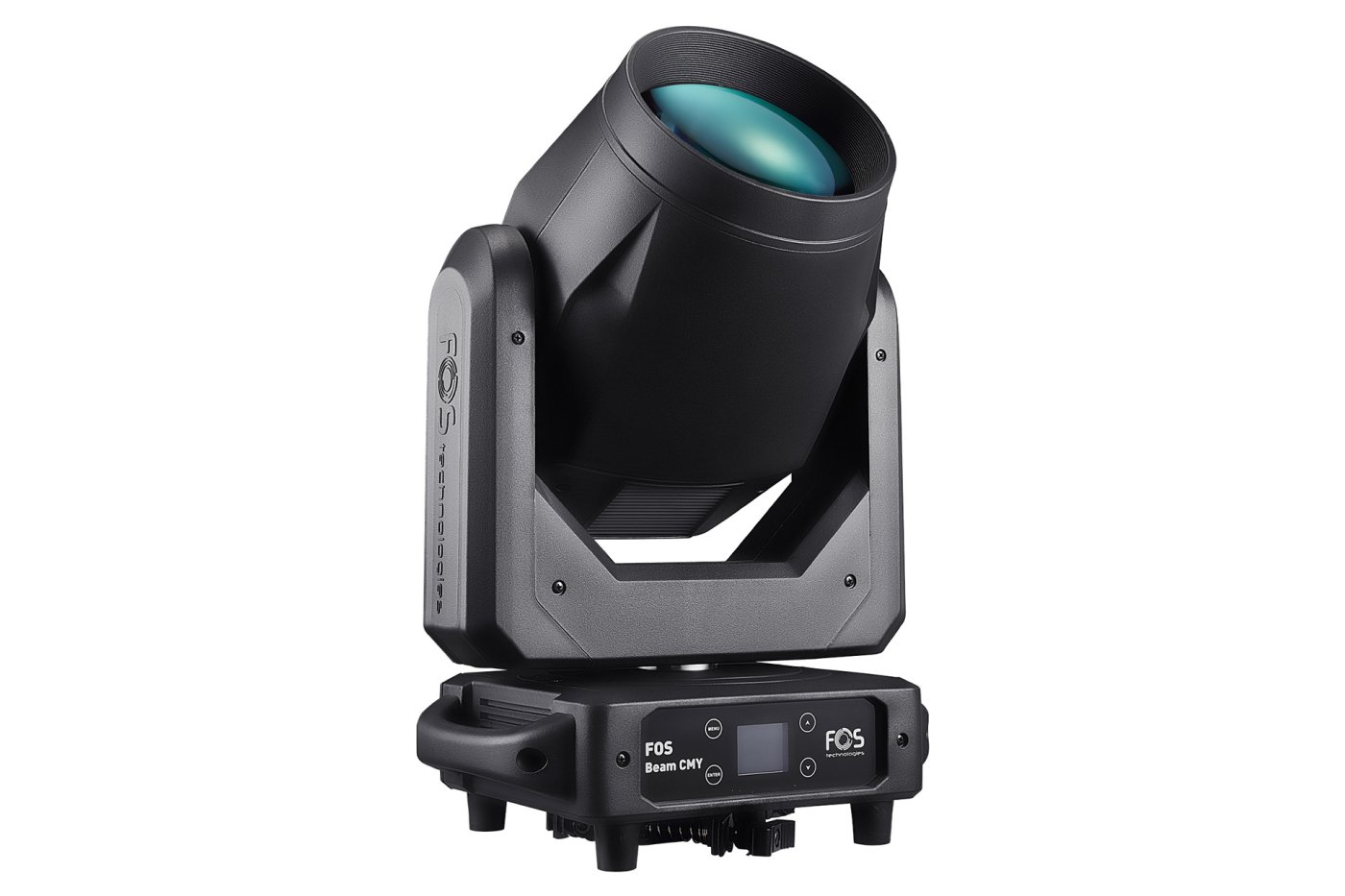

Elevate your show with the new game-changer FOS BEAM CMY, super powerful PHILIPS MSD Silver 380W/4000 Hrs lamp, CMY color mixings, 14 Colors and Rainbow color effect, 17 Static Gobos, circular 16-facet and 24-facet overlay rotating prisms, precise 2-degree beam angle, 160mm Front lens, high speed 3-phase pan/tilt motors, custom rainbow wheel WW-CW-Amber-Red-deep blue, electronic Focus and Frost functions, 20 and 24 DMX Channels, lcd menu, foldable clamps, 17.5kg

Light Source / Optics

Light source: Philips MSD Silver 380W/2
Life span: 4000 hours.
2°, 160 mm front lens.
Motorised focus

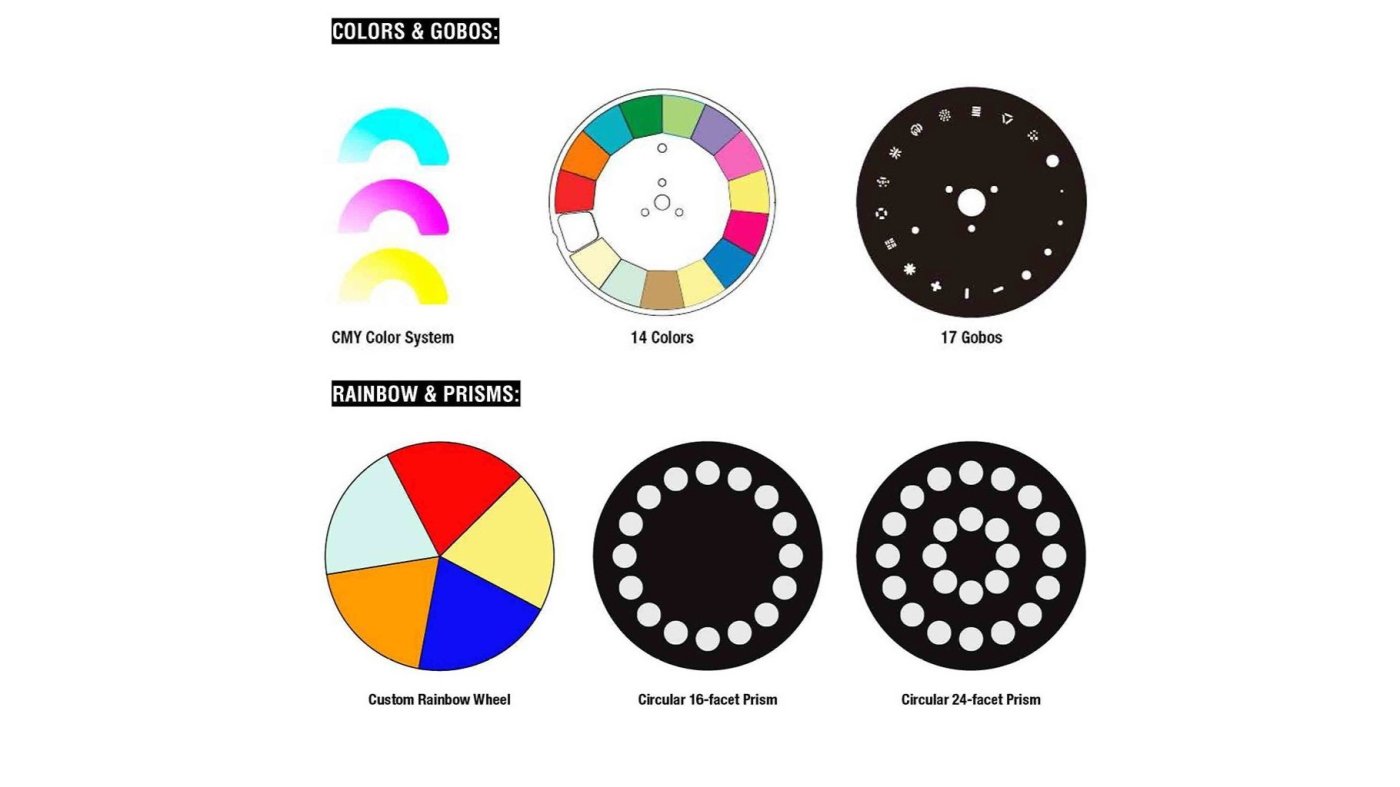

Effects

CMY colour mixing system
Colour disk with 14 dichroic filters (colour correction filters included)
Rainbow effect and CMY random colour macros
Circular, rotating 16 & 24 facet prisms
Multicolor filter
Frost filter
17 fixed gobo patterns with gobo shake and scroll effects
Custom Rainbow Wheel: WW-CW-Amber-Red-Deep Blue

Control

DMX control with 20 or 24 channels
OLED display with touch buttons
Auto run, and master/slave functions
Manual control and live DMX indications on the display.
Calibration via the options menu
Lamp hours with clear function
16-bit Pan/Tilt movements

Technical Specifications

Input voltage: AC 100/240V, 50/60 Hz.
Power consumption: 600W
Pan: 540°, Tilt 270° (3-phase motors).
Weight: 17.5 kg
Fixture dimensions: 335 x 240 x 519 mm
