Hydor BSW PRO

Hydor BSW PRO

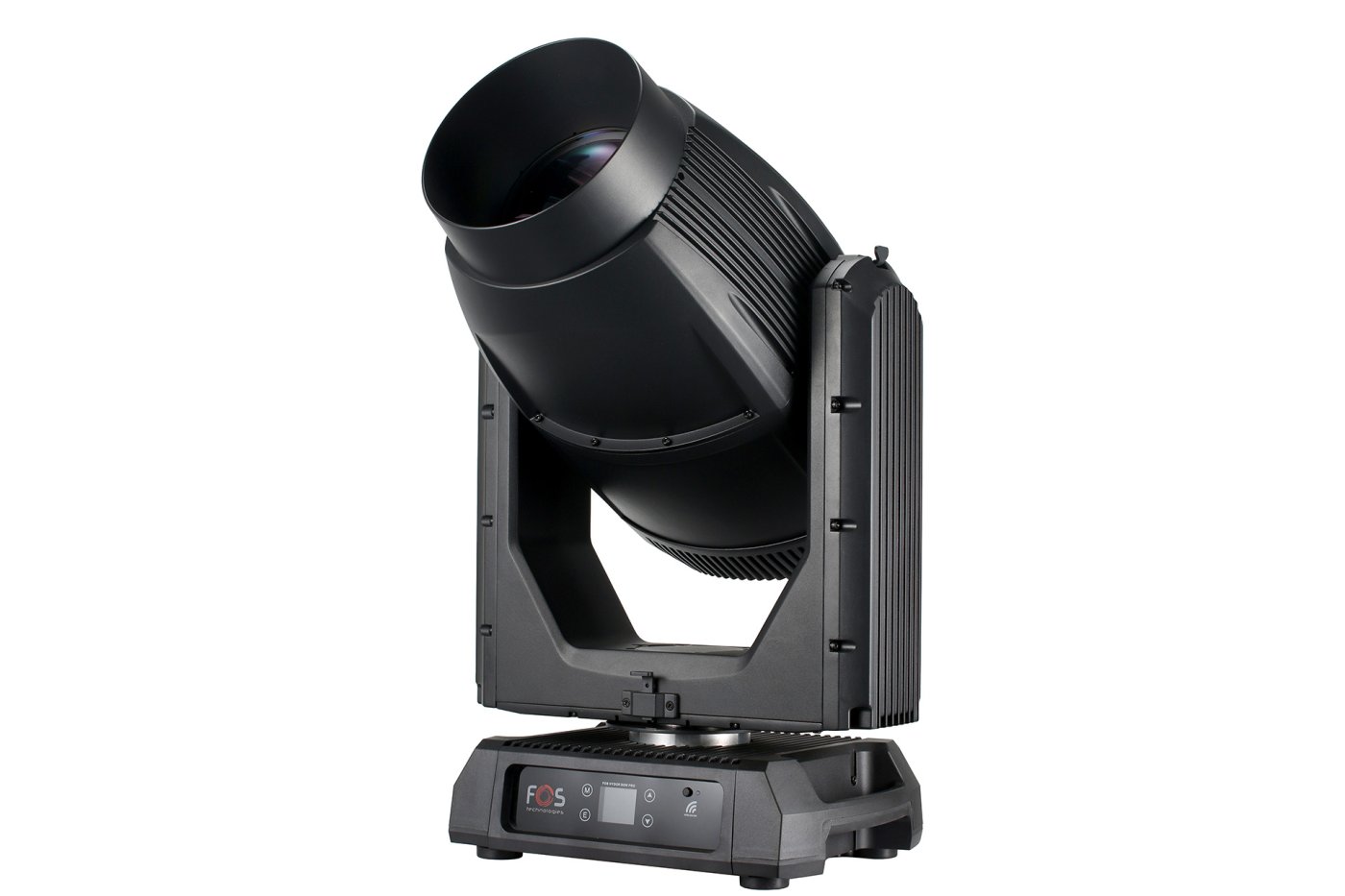

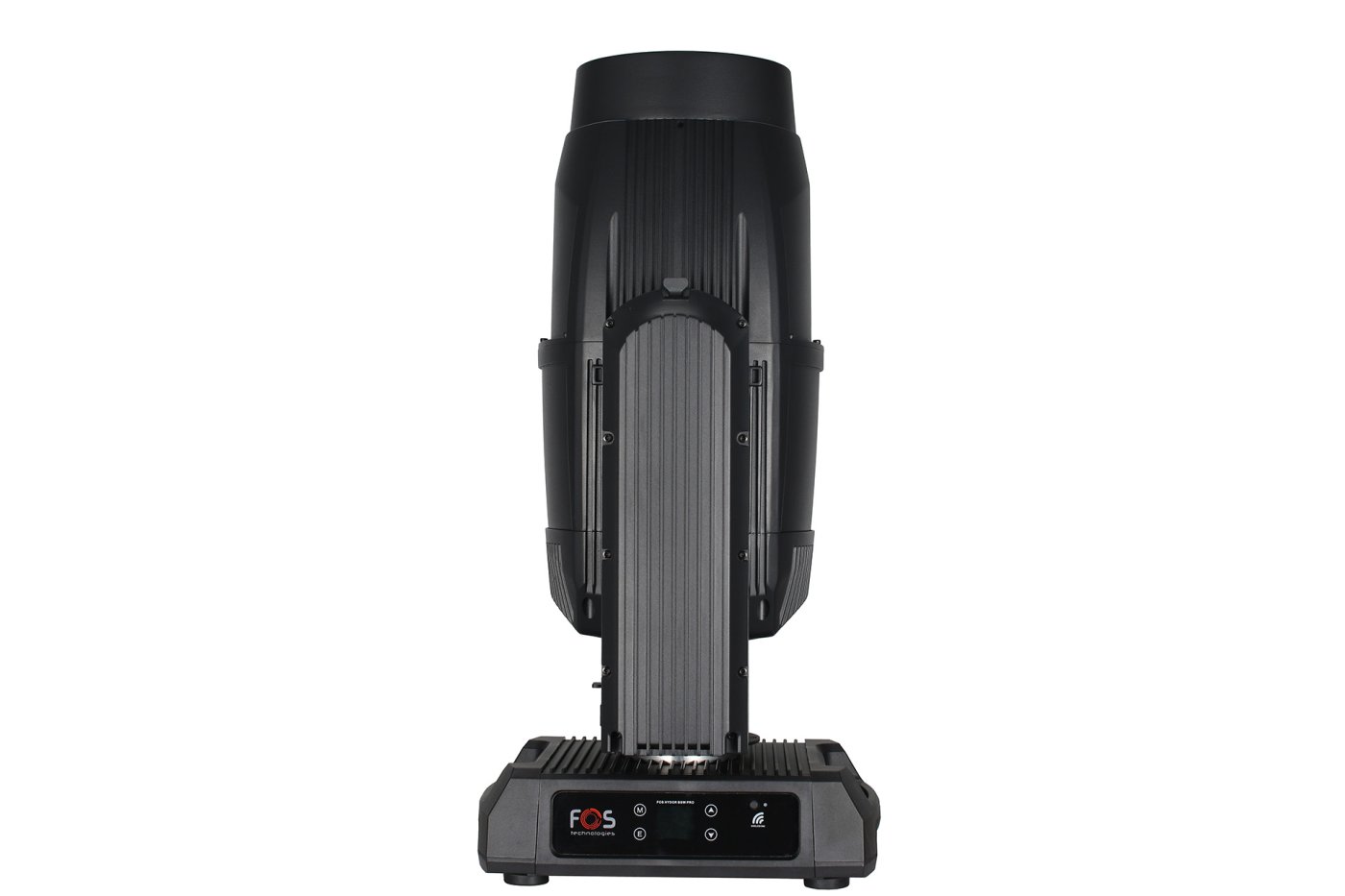

Multifunctional IP65 BSW led moving head, 500 watt 7000K led engine module, CRI 70, CMY color mixing, linear CTO, 12 fixed color wheel, motorized zoom 3-45 degrees, dynamic effects animation wheel, 7 rotating interchangeable gobos, 12 static gobos, frost filter, double prism wheel linear and 4 facet, 16bit 0-100% linear dimmer, light weight Magnesium alloy housing, LCD display with 4touch buttons, wireless DMX and RDM function, silent fan operation, TRUE1 Powercon in/out, 28kg

1. Optical Performance & Light Engine

The heart of the unit is a high-density LED engine designed for long-throw applications.
Light Source: 500 Watt White LED module.
Color Temperature: 7000K (Daylight cool).
Luminous Flux: Estimated ~25,000–30,000 lumens (varying by zoom angle).

Beam/Spot/Wash Modes:
Beam: 3° for sharp, narrow aerial effects.
Spot: Mid-range zoom for crisp gobo projection.
Wash: Up to 45° with the integrated frost filter for wide stage coverage.

Front Lens: Large-diameter antireflective lens for a uniform beam field.

2. Physical & Environmental Construction

Designed specifically for the rigors of touring and outdoor use:
Housing: Magnesium alloy. This is why it weighs only 28kg.

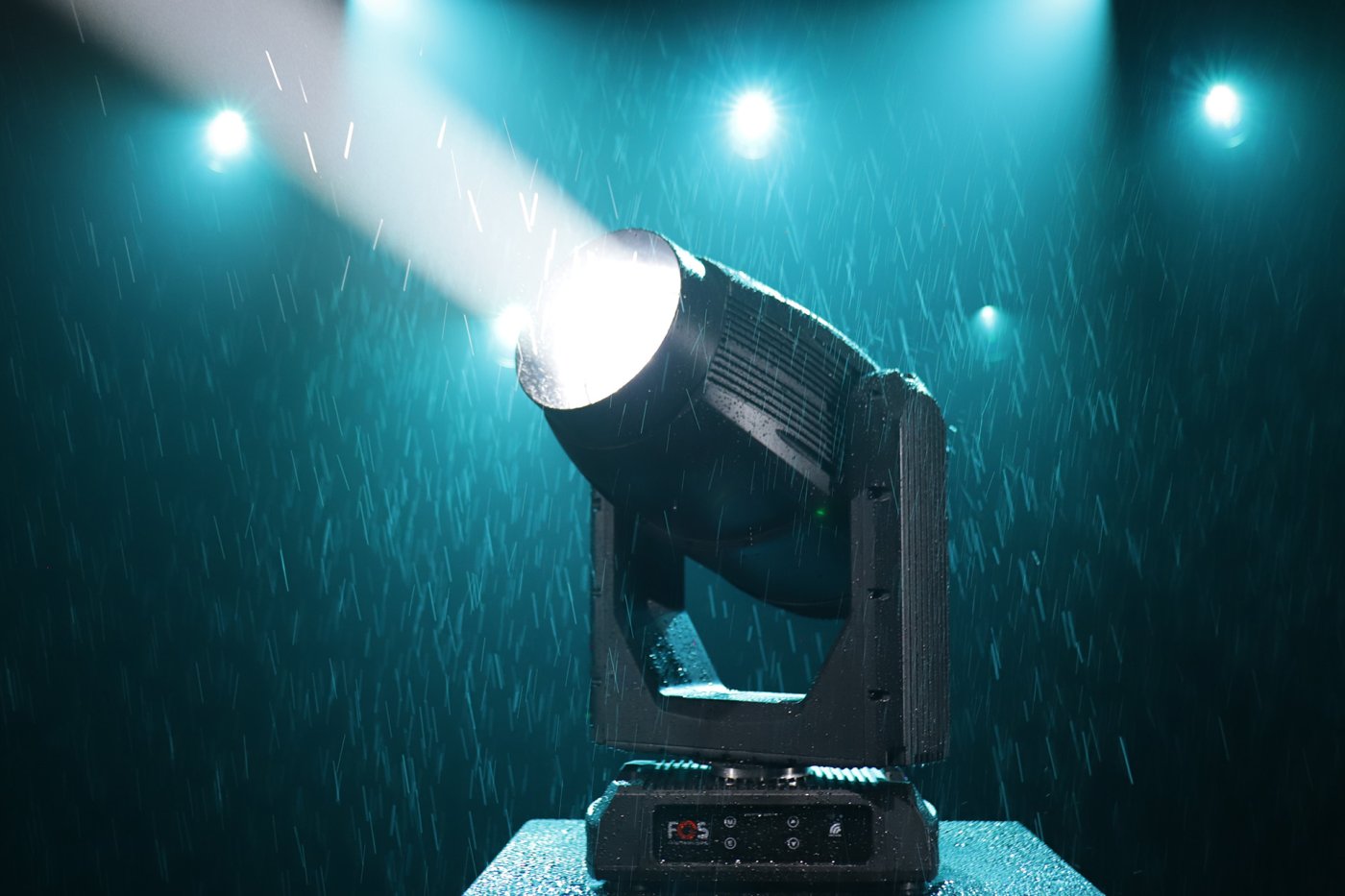

Protection Rating: IP65 (Dust-tight and protected against water jets from any angle).
Cooling System: Intelligent temperature-controlled fan system with a "Silent Mode" for theater applications.
Pan/Tilt: 540° Pan and 270° Tilt with 16-bit resolution and automatic repositioning if the head is knocked out of place.

3. Comprehensive Effect Suite

Color System: Linear CMY: Infinite color mixing.
Linear CTO: Color temperature correction (7000K down to 3200K).
Fixed Wheel: 12 dichroic colors + open.

Gobos:
Rotating Wheel: 7 interchangeable glass gobos (bi-directional rotation, indexing, and shake).
Static Wheel: 12 fixed metal gobos for beam shaping and break-ups.

Prisms:
4-facet Circular. Linear Prism.

Note: These can often be overlaid to create complex, multi-layered patterns.
Animation Wheel: A dedicated dynamic disk for fire, water, or cloud effects.

4. Control & Electronics

Protocol: DMX-512, RDM (Remote Device Management), and Wireless DMX (built-in receiver).
DMX Channels: Typically operates in 3 modes (Standard, Basic, Extended), likely ranging from 24 to 34 channels.

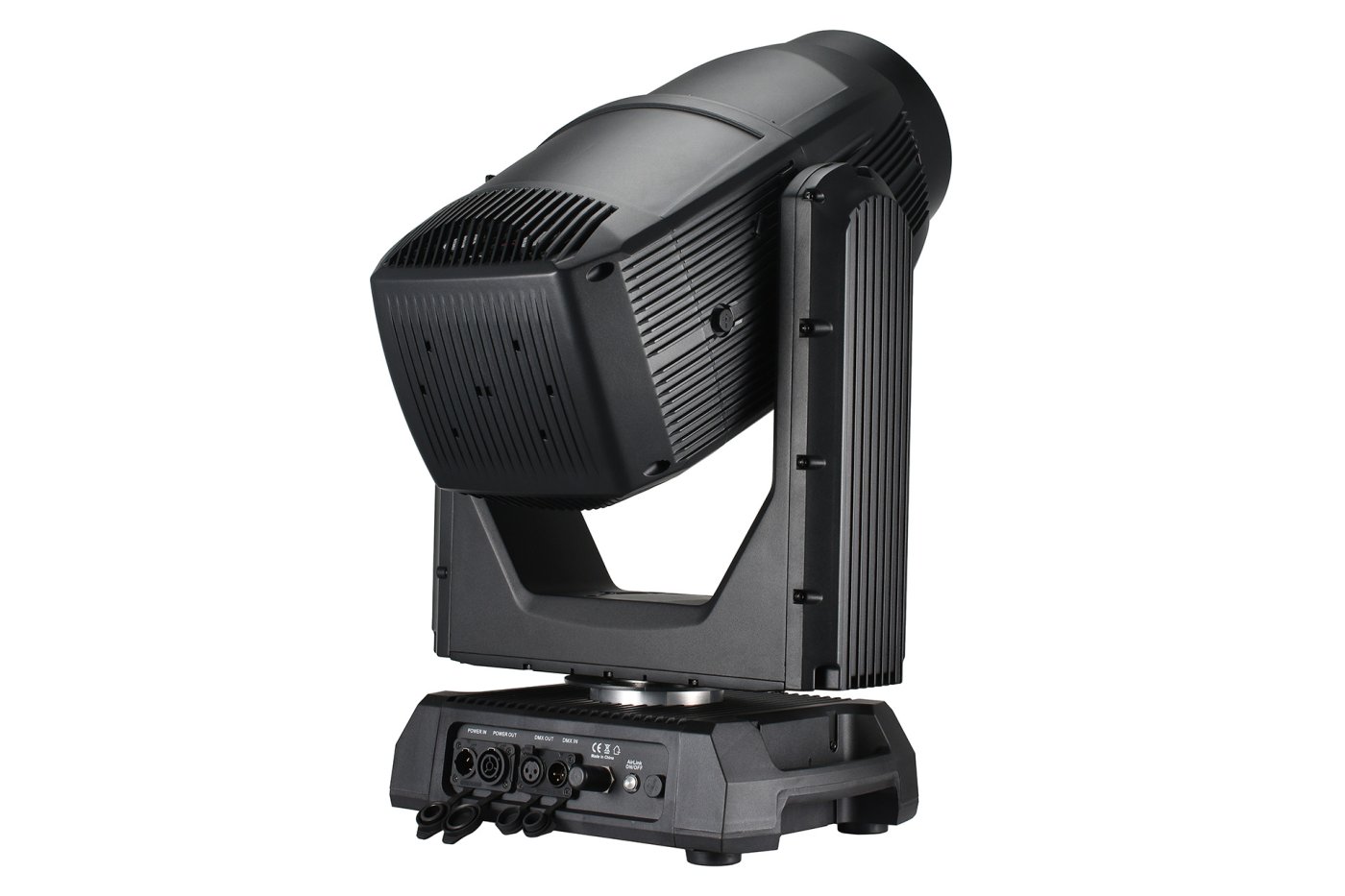

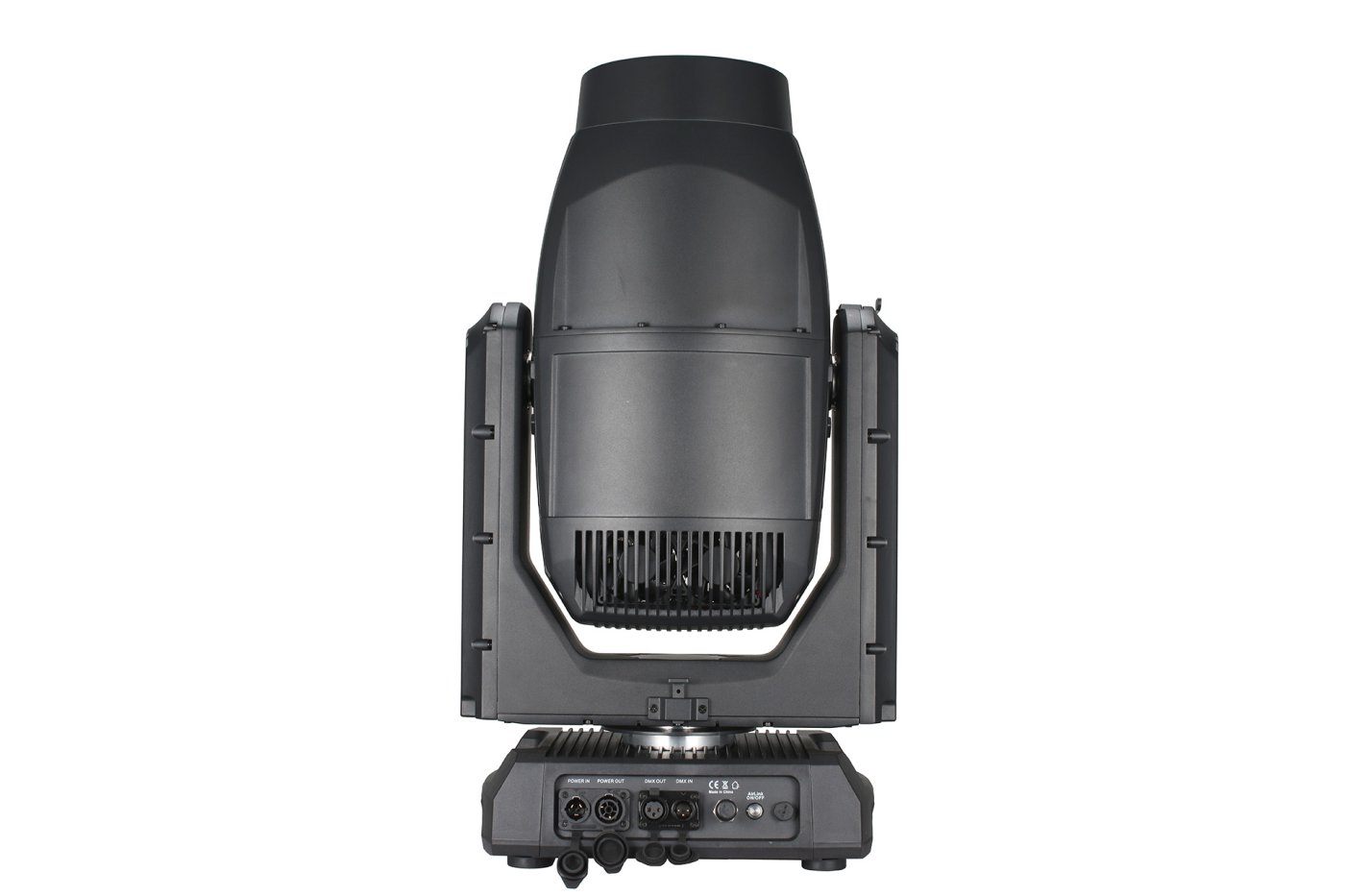

Connectivity:  IP65-rated 3-pin or 5-pin XLR In/Out. Powercon TRUE1 In/Out.
