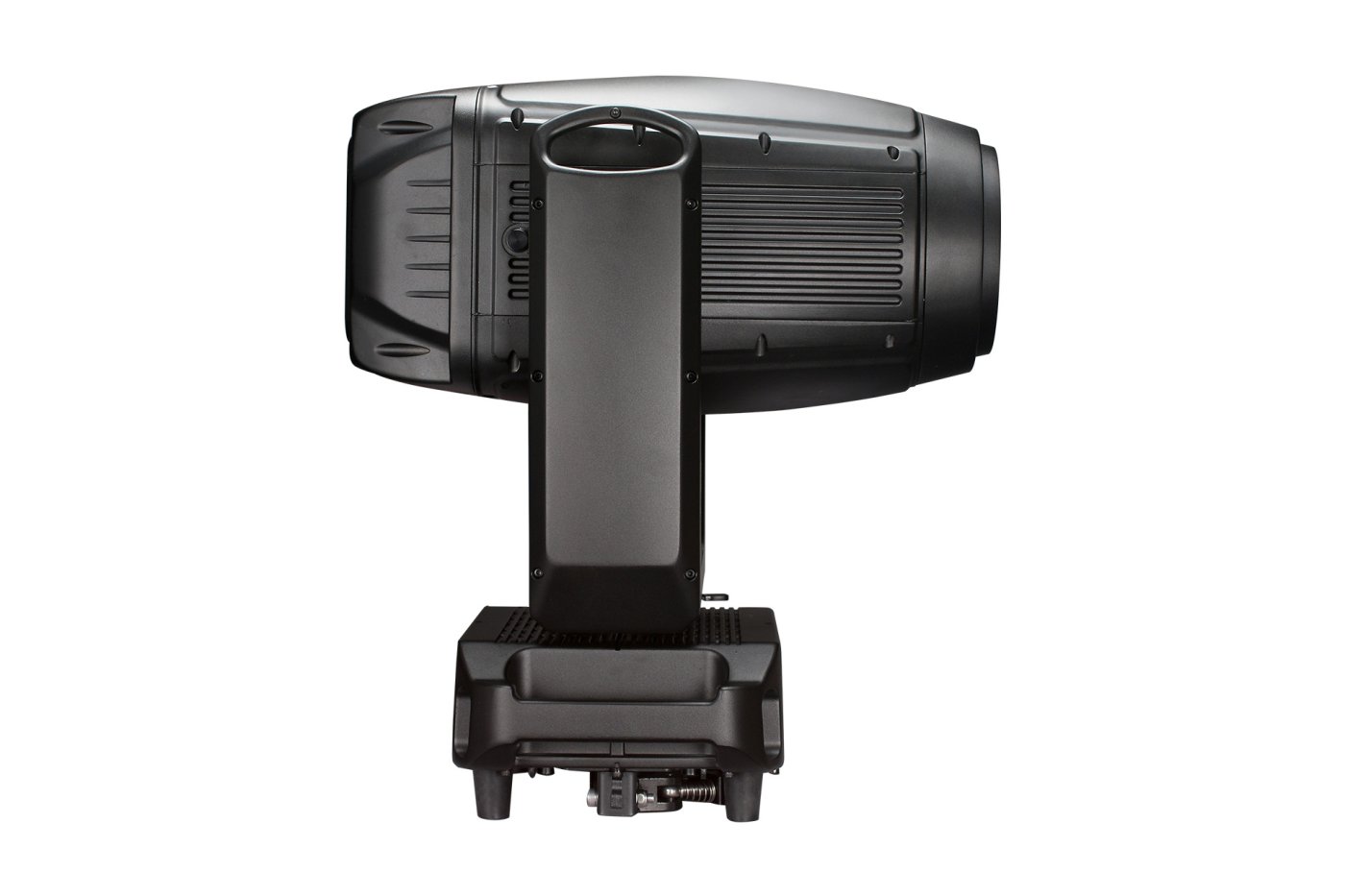

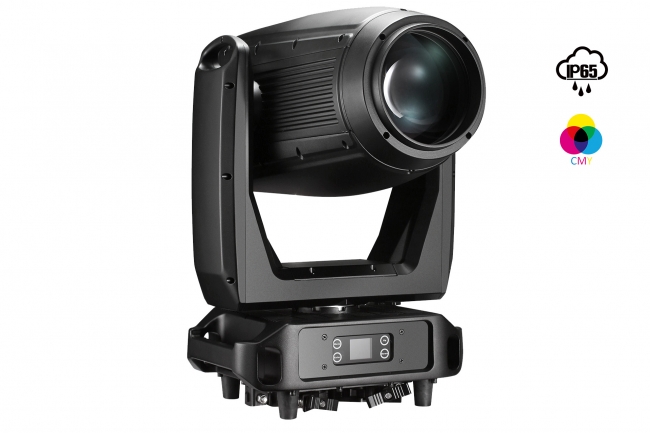

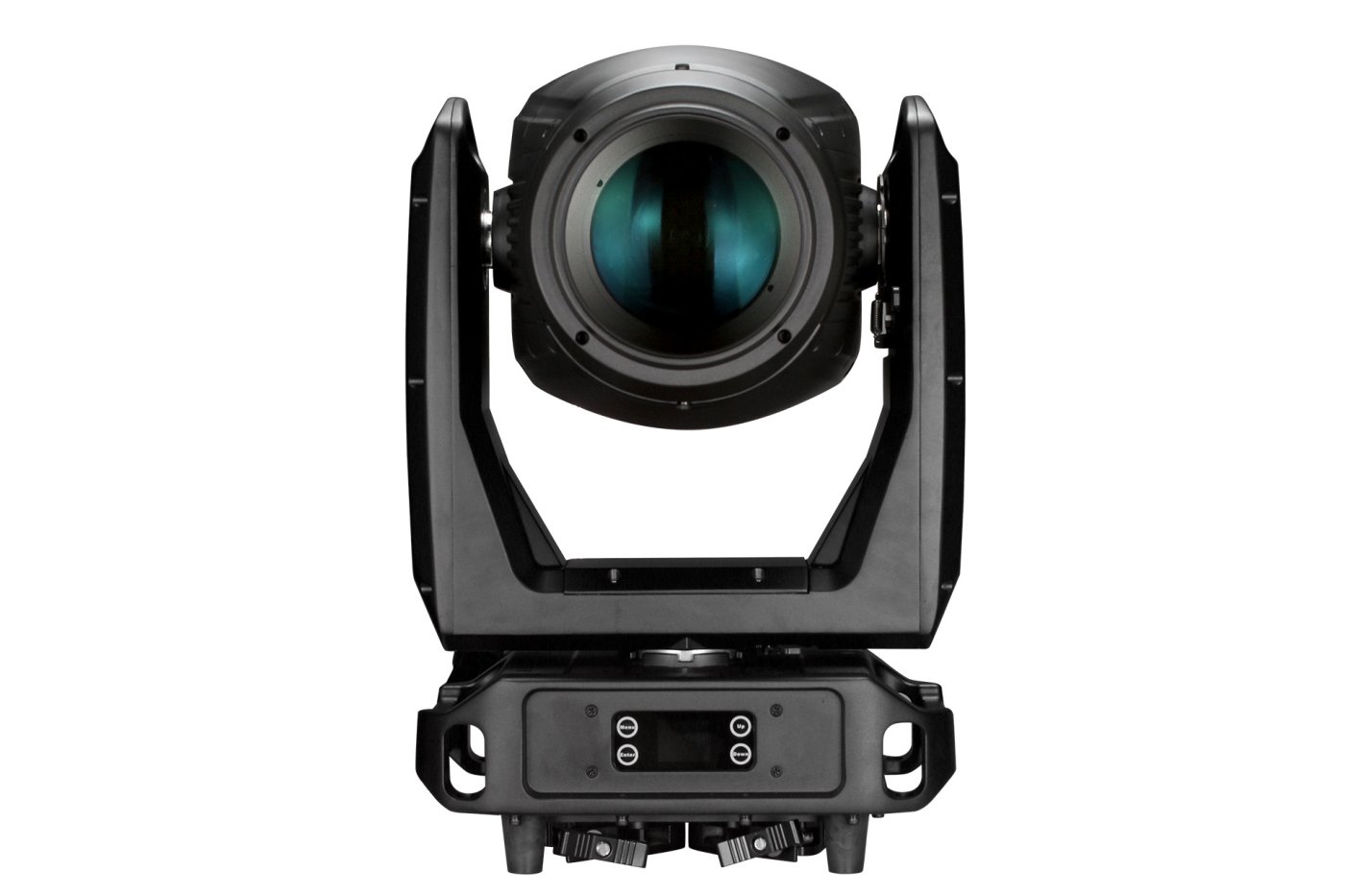

Hydor Profile

Hydor Profile

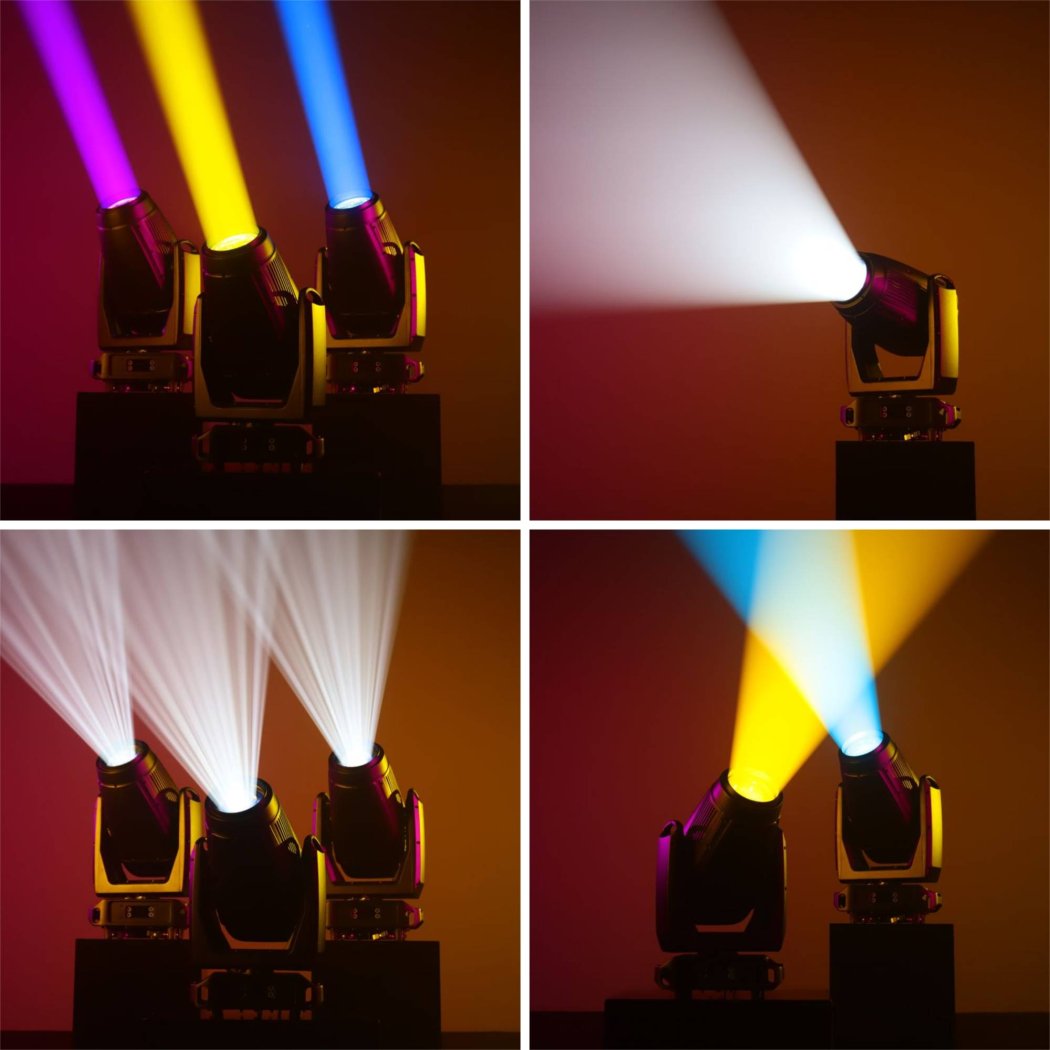

Innovative outdoor IP65 multipurpose Profile and Beam/Spot/Wash/Profile (BSWP) moving head, latest technology White 800W LED light source, 7000K color temperature, CRI 90Ra, Zoom range 5°-50°, variable High-precision glass 145mm lenses, electronic linear HD focus, 2 prisms effect, 7 interchangeable variable speed rotation gobos, 8 static gobos, linear CMY + CTO for infinity color mixing, 5 colors wheel + CRI, 4 rotating blades framing system, frost effect, linear animation wheel,29kg.

Light Source / Optics

Light Source: 800 Watt, 52.500 lumens.
Colour temperature: 7000 Kelvin.
Standard CRI: >70
HCRI mode: >90
Life expectancy: 20.000 hours.
Beam angle: 5 - 50 degrees.
Diameter of front lens: 145 mm.

Effects

Zoom range: 5°-50°.
Motorised iris.
8 static gobos.
7 rotating gobos.
Animation wheel.
4F circular prism, and 4F linear prism, combinable.
Medium frost filter.
CMY colour mixing system.
Linear CTO colour correction.
Colour wheel with 5 dichroic filters.
High CRI filter.
4 blades for light shaping with full insertion.
180-degree blade module rotation.

Technical Specifications

Power supply 100/240 Volt, 50/60 Hz.
4-touch button control panel.
Compatible with DMX512, RDM, ArtNET, sACN protocols.
DMX control channels: 42, 32 & 23.
Rotating gobo diameter: 15 mm, image size 13 mm.
Pan range 540°.
Tilt range 260°.
Automatic Pan/Tilt repositioning system.
IP65 rated.
Fixture dimensions: 358 x 239 x 658 mm.
Weight: 29 Kg.
